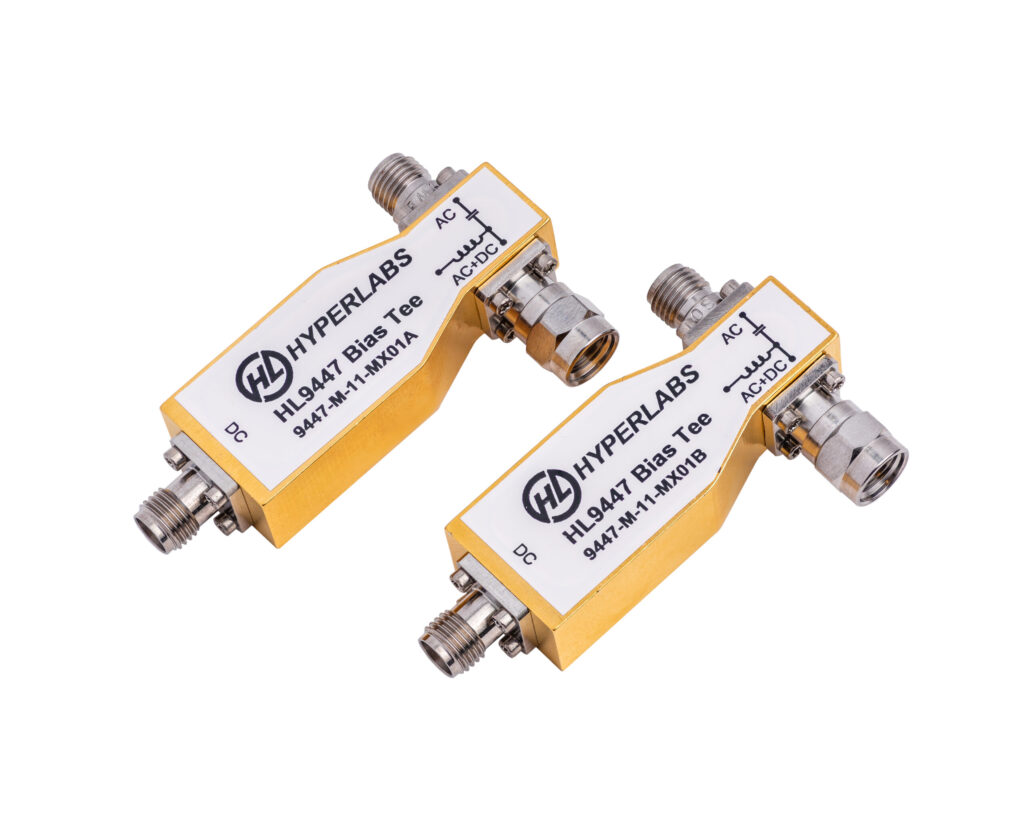

Broadband Bias Tee
35 kHz to 67 GHz, 175 mA
Feature Overview
- Available in Standard and Kelvin Configurations
- Ultra-broadband 50 Ω Bias Tees for RF and High-Speed Applications
- Combines DC Bias and RF Signals with Minimal Signal Loss
- Excellent Impedance Matching and Signal Integrity
- Frequency Range up to 67 GHz
- Matched Pairs available for Phase-Sensitive Applications
- Multiple Connector and Current Handling Options

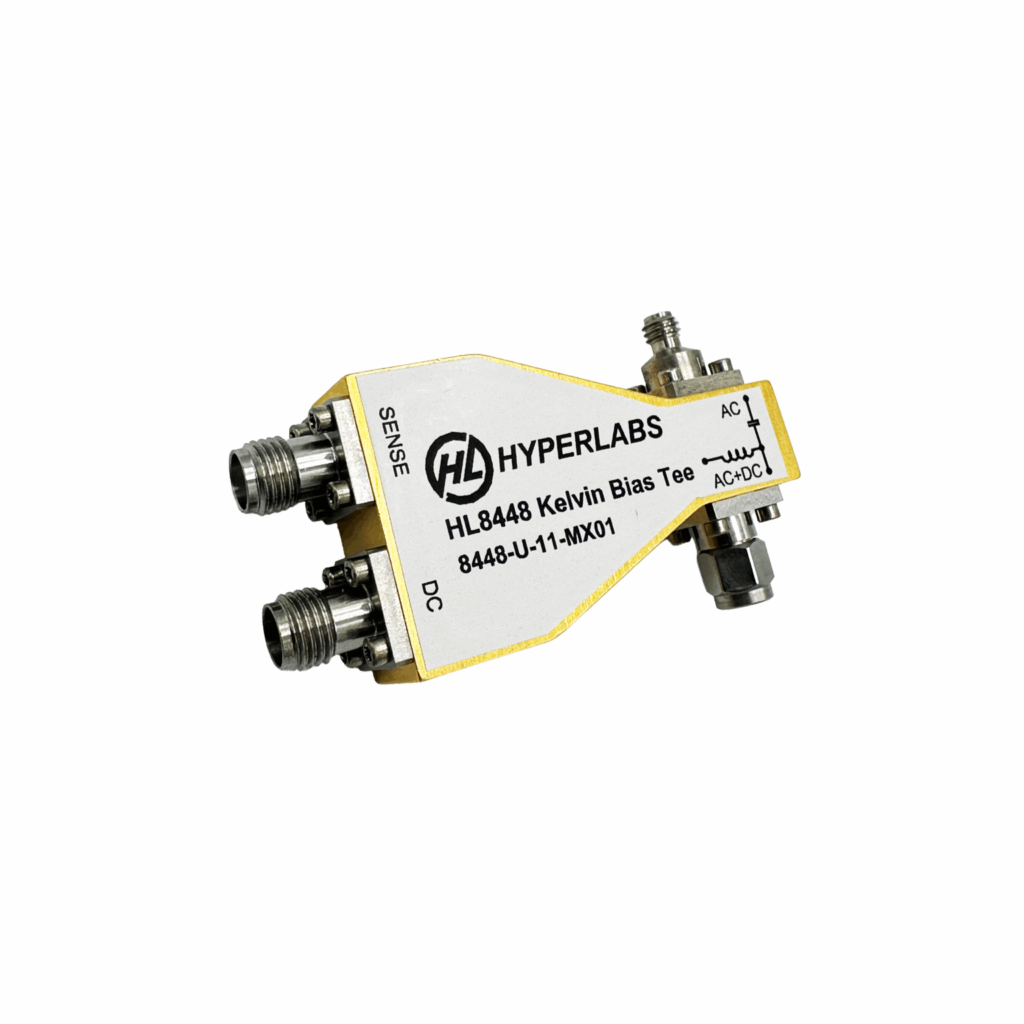

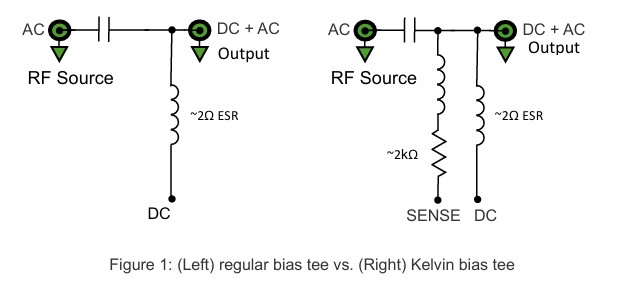

Kelvin Bias Tees:
In Applications where precise DC Bias Voltages are required, a Kelvin Bias Tee can be implemented to eliminate
uncertainty about the DC Bias Voltage applied at the DUT.
Designed for Typical Applications
- High-Speed Data Communication Systems
- Optical Communication and Photonics Applications
- RF Amplifier and Active Device Diasing
- Semiconductor Testing and Characterization
- Microwave and Millimeter-Wave Measurement Setups
- Signal Integrity and Device Validation
Committed to Quality
